Compression outlet brass adapters are vital for maintaining trustworthy plumbing connections. These adapters join OD tubing to screw-fit connections, guaranteeing leak-proof seals. This is necessary for equipment like icemakers and refrigerators. The choice of brass is common because of its durability and easy fitting process.
Click Here To View 1 2 Male To 3 8 Male Adapter
This page covers the compression outlet adapter for use with 3/8 and 1/2 OD tubing. Contractors and homeowners often look for these adapters for different appliances. They are available in configurations including straight connectors, MIPS and FIPS threaded exits, unions, and reduction fittings.
For installers, having access to wholesale supplies is important. Installation Parts Supply (IPS) offers a wide range of brass adapter fittings. They cater to individual and volume purchases, providing competitive pricing. The sections below will cover meeting water safety laws and Prop 65 rules. We will also provide technical guidance on installing and leak prevention.
Primary Takeaways
- Compression outlet brass adapter joins outside diameter tubing to threaded connections for water feeds.
- The brass fitting is preferred for fridges, ice machines, and filtration.
- 3/8 water line adapter is a standard size for hooking up appliances.
- Installation Parts Supply provides wholesale deals with single-piece to bulk ordering.
- Subsequent parts of this guide detail safety codes, fitting tips, and fixing leaks.
Reasons To Select Brass Compression Fittings For Plumbing Jobs
Compression fittings made of brass are the go-to option for contractors and residents. They offer long-lasting performance and tight joints. This renders them perfect for supply lines and output points. Brass compression fittings guarantee consistent machining and exact specs, enabling long-lasting connections.
The Long-Lasting Nature And Rust Resistance Of Brass
The brass material withstands rust and functions effectively in humid settings. This quality ensures the ferrule sits right and keeps threads from locking up. The brass nut maintains tension long-term without splitting, ensuring leak-free connections in standard use.
Matching Common Materials: Copper, PVC, And PEX
These brass fittings readily connect to copper tubing and can fit plastic tubes with proper sleeves or inserts. Many manufacturers provide conversion parts for joining PEX, PVC, or copper without damaging the pipe. It is important to employ the right stiffener to stop distorting soft plastic lines.
Superiority Over Plastic And Steel In Supply Line Use
Brass offers stronger threads and better heat and pressure ratings compared to plastic. Compared to steel, brass corrodes less in drinking water setups and reduces galvanic reaction risks when touching copper. For jobs such as connecting a fridge or ice maker, a 3/8 to 1/2 converter in brass makes install easier and provides a strong link.

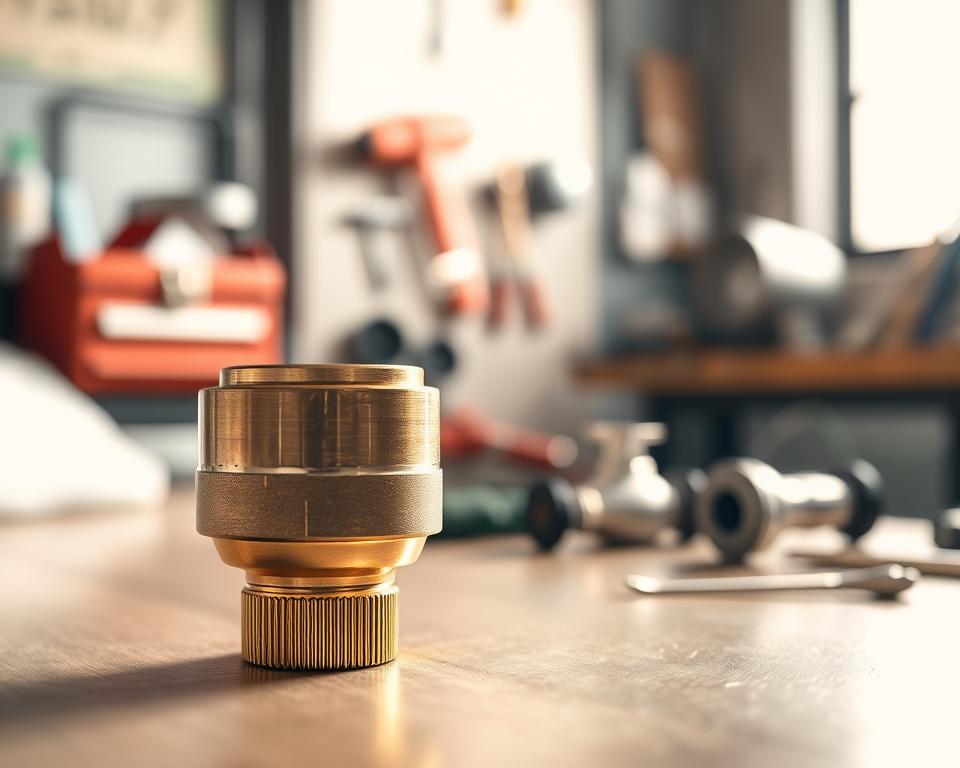

Compression Outlet Brass Adapter
This specific adapter connects tubing to threaded or other outlets. It’s a small brass fitting making transitions easy from tube lines to pipe threads or valve inlets. It’s ideal for refrigerator and icemaker hookups, reverse osmosis outlets, and humidifier lines. It ensures a secure 3/8 comp to 1/2 thread or similar connection.
Definition And Standard Usage Scenarios
The adapter unit utilizes a nut and ring to seal tightly. It provides an adapter exit like FIPS, MIPS, or NPT. Plumbers choose it to avoid soldering or flaring when connecting 3/8″ or 1/2″ OD supply tubing.
It is frequently used to link 3/8″ OD water supply lines to refrigerator water valves. It also serves for connecting RO units into a household line and linking humidifiers to a cold water feed. Brass is the choice due to toughness, rust resistance, and predictable torque behavior when tightening the compression nut.
Popular Configurations: From Compression To Adapter
Typical setups combine a compression inlet with a threaded outlet. For instance, 3/8 compression to 1/4 female for small devices, and 3/8 comp to 3/4 male for larger valves. Union reduction compression adapters let you switch between tube diameters or alternate thread types without special tools.
You can also find parts marked as 3/8 compression fitting to 1/2 threaded exits for line changes. The 3/8 x 1/2 adapter style is common on equipment where the supply tube is smaller than the device input.
Spec Examples And Distributor Catalog Entries
Supplier catalogs list compact parts with exact details. Common listings include 3/8″ OD comp x 1/4″ FIPS and 3/8 OD x 3/4 MIPS. A typical compact adapter is approximately 30 x 18 x 15 mm and is lightweight, handy for cramped sink areas.
Search terms like Brass Outlet Adapter, compression outlet adapter, 3/8 to 1/2 plumbing adapter, or 3/8 by 1/2 adapter will return matching parts. Choosing the right adapter minimizes swapping parts and accelerates fixing when working with various tubes and threads.
Adapter Sizes And Types: 3/8 Versus 1/2 Inch Connections
Selecting the appropriate adapter involves pairing the tube OD to the fitting’s thread. Compression ratings depend on the tube’s outer diameter. As an example, a 3/8″ OD tube requires a matching nut and ring. Threaded connections adhere to norms like NPT, MIPS, or FIPS, with clear markings. Make sure the comp end fits the tube OD, and the thread end fits the device.
Understanding OD vs thread sizing
Compression parts are measured by the tubing’s outside diameter. A 3/8″ compression fitting fits 3/8″ OD copper or PEX tubing. However, pipe threads are nominal and often larger than the actual bore. For instance, a 1/2″ pipe thread does not match a 1/2″ tubing OD. Always check both labels before buying.
Deciphering common part labels
Vendors label parts clearly, such as 3/8 x 1/2 for a 3/8 comp side and a 1/2″ threaded end. You’ll find listings such as 1/2 female to 3/8 male or 3/8 to 1/2 supply line adapter. Many catalogs display both OD and thread type, like 3/8″ OD Comp x 1/4″ FIPS, to prevent mistakes.
Choosing the right adapter type
Use a 3/8 to 1/2 male adapter for a compression connection on 3/8 tube and a male 1/2″ pipe thread. Choose a 1/2 female to 3/8 male adapter to join a 1/2″ female thread to a 3/8 male side. Selecting the wrong orientation may lead to leaks or require more parts.
| Name | Comp End | Thread Side | Typical Use |
|---|---|---|---|
| 3/8 by 1/2 unit | 3/8 inch tube | 1/2″ pipe thread (male or female as specified) | Supply lines to appliances with 1/2″ ports |
| 1/2 F to 3/8 M adapter | 3/8 male comp/pipe | 1/2″ female pipe thread | Joining 1/2 F port to 3/8 line |
| 3/8 – 1/2 supply adapter | 3/8″ OD compression | 1/2″ threaded connection | RO or fridge line changes |
Suppliers provide a wide range, in many sizes. Ensure the part label fits your tube size and the thread spec for the device. If unsure, measure the diameter and check the thread type prior to ordering. For water service taps, verify if you need a 1/2 to 3/8 water line adapter or a 3/8 to 1/2 threaded adapter to avoid rework.
Adapter Functions: Supply Line, Water Line, And Outlet Connections
Compression outlet brass adapters adapt tubing to threads and valves. They enable a 3/8 water line adapter to join appliance ports, service valves, or branch points. This is frequent for feeding ice makers, refrigerators, RO units, and whole-room humidifiers.
For fridges and ice makers, the typical tubing is 3/8″ OD. A 3/8 to 1/2 adapter or a 1/2 to 3/8 supply line adapter bridges tubing and appliance threads. Plumbers use these fittings to join compression tubing to machine inputs or to add a shutoff using a brass valve.
Reverse osmosis units and humidifiers use small tubes. Many setups use a 3/8 OD comp x 1/4 FIPS fitting to feed a branch or connect a valve. This method also supports quick hookups for pet fountains, evaporative coolers, and misting systems.
Saddle valves and self-piercing kits provide field-friendly tapping options. A piercing kit clamps to 3/8″ through 3/4″ inlet piping and delivers a 1/4 comp output. Kits typically include inserts or sleeves to shield the tube and ensure a leak-free seal when connected.
Below is a quick comparison to help choose the right adapter or valve for common tasks.
| Use Case | Common Part | Notes |
|---|---|---|
| Fridge or Ice Machine | 3/8 water line adapter (3/8 OD comp to appliance inlet) | For 3/8 inputs or thread changes |
| Supply line conversion | 3/8 to 1/2 supply line adapter or 1/2 to 3/8 supply line adapter | Matches tubing OD to larger shutoff valves or supply branches |
| RO System Feed | 3/8 OD comp x 1/4 FIPS adapter | Feeds RO post-filter or accessory fittings without soldering |
| Accessory tap | Self-piercing valve with 1/4″ compression outlet | Quick fit; protect plastic tube |
| Stop Valve | Brass compression valve | Reliable shutoff for adapters |
Breakdown Of Brass Compression Fitting Components
This guide explains the components used in compression assemblies. Knowing each part is vital for choosing the correct brass compression connector or adapter for various applications.
The basic setup has three elements: the compression nut, the ring or ferrule, and the fitting body. The brass compression nut presses the ferrule into the body. The ring, when compressed, seals the tubing OD with a metal-to-metal connection.
The design of the ferrule is important. A brass ring is best for copper lines. For PEX or plastic, a Delrin sleeve or brass insert is required to prevent damage and ensure a tight seal. Vendors sell these parts in many sizes, like 1/4, 3/8, and 1/2 inch.
Each part has a specific function. A connector joins two tubes with the same OD. A coupling joins two sections end-to-end. A compression outlet adapter converts compression to a threaded outlet for devices. A female-female adapter connects two male-threaded components without changing tube.
Wholesalers provide nuts and ferrules in sizes ranging from 1/8″ to 3/4″ OD, with pricing per piece. It’s important to note the nut itself does not directly contact the water. Rather, the ring and body create the primary fluid path. This detail is significant when selecting materials for drinking water.
- When to choose brass ferrules: use on copper or metal tubing for long-lasting seals.
- When to use plastic sleeves or brass inserts: select for plastic to prevent leaks.
- Selecting adapters: pick a compression outlet adapter for appliance feeds, a coupling for lines, and a connector for same-OD joins.
Guide To Installing Compression Adapters Correctly
Good installation begins with straight cuts and the right components. A quality tubing cutter is needed to avoid oval ends. It is crucial to remove burrs from inside and outside the tube so the ferrule sits flat. Check the OD of the tube matches the ferrule and nut size. Plastic tubing often requires a plastic sleeve or brass insert for reliable sealing.
- Cut tube straight; check with a square or guide.
- Remove burrs to stop leaks.
- Verify OD against the ferrule specification before assembly.
- For plastic lines, use the right insert.
Tightening recommendations:
- Hand-start threads to prevent stripping.
- Turn the nut until hand tight.
- Use a wrench to finish tightening, usually a quarter to half turn more as advised.
- Don’t over-tighten; too much force can crush the ring and cause dripping.
Using thread tape:
- Skip sealant on the compression threads. The ring seals it and sealants can prevent proper seating.
- Apply Teflon tape for threaded adapters on pipe-threaded portions such as NPT or IPS fittings.
- For mixed connections like a 1/2 female compression to 1/2 male NPT adapter, leave the compression side clean and tape the NPT with PTFE tape or approved joint compound.
- Manufacturers may recommend specific compounds like heavy tape or pipe joint compound for high-pressure pipe threads; follow their guidance.
| Step | Task | Why it matters |
|---|---|---|
| 1 | Cut square and deburr tubing | Prevents ferrule misalignment and leak paths |
| 2 | Confirm OD and select proper ferrule/nut | Ensures a correct mechanical fit and seal |
| 3 | Hand-start threads, hand-tighten nut | Reduces risk of cross-threading and initial alignment |
| 4 | Wrench tighten slightly | Seals without damage |
| 5 | Do not use thread sealants on compression threads | Preserves ferrule sealing action; use PTFE for NPT threads |
Potable Water Safety And Lead Compliance Guide
Choosing the right adapter requires balancing between safety, compliance, and application. This guide will cover laws and codes, warnings, and how to pick parts for drinking water versus industrial use.
Lead Content And Federal Standards
The SDWA sets strict limits on lead content that come into contact with drinking water. Current rules and NSF codes demand a low lead content. Seek out lead-free parts that meet NSF 61/9 or state rules such as AB 1953.
Prop 65 Warnings And Safe Handling
Prop 65 requires warnings on items that expose users to cancer-causing or reproductive harm chemicals. Vendors such as major sellers display Prop 65 alerts on leaded brass. Wash hands after touching these parts and don’t use them for drinking water.
Choosing For Potable Vs Industrial Use
For potable water, choose a certified potable water compression fitting. These parts are marked lead-free and have NSF marks or approvals. For machinery, irrigation, or non-potable use, brass fittings not for potable water are fine if clearly marked for industrial use.
Supplier Labels And Safety
Check labels and data sheets before buying. Distributors often state if an item is “not for potable water” or provide NSF certifications. Use approved items where required with the Safe Drinking Water Act and local plumbing codes.
Quick Check
- Check for NSF 61 or equivalent certification for water.
- Verify labeling for lead free brass fittings and any California Proposition 65 warnings.
- Do not use brass fittings not for potable water on home water lines.
- When in doubt, pick a safe fitting from a reputable manufacturer such as Mueller, Watts, or Nibco.
Standard Brass Adapter Specs And Examples
Suppliers and stores offer a wide range of compression fittings for service and repair. They carry small ferrules and nuts, plus adapters. This makes it easy for buyers to find matching tubing OD and thread types using common part labels.
Wholesaler stock lists
Distributors stock compression fitting sizes from 1/8″ to 3/4″ OD. They offer increments like various fractions. These match common supply lines in kitchens, ice makers, and equipment hookups.
Catalog listings and specs
Catalog entries list OD by Thread. For example, you may find 3/8 OD x 1/4 FIPS or 3/8 OD x 3/4 MIPS. Also available are 3/8 male pipe x 9/16 female adapters and reducing unions for converting compression to adapter exits.
Specific part examples
Parts such as 3/8 by 1/2 are popular for changing sizes. The 3/8-1/2 supply adapter is frequently used for appliances. Less common setups, like 7/16″ OD x 3/8″ MIPS, are also available.
Pricing and availability notes
Costs differ by part. Small sleeves and nuts are cheap, while adapters and elbows range from $4–$20. Needle valves and specialty items are pricier. Volume prices are available through wholesalers like Installation Parts Supply.
Order and delivery options
Many suppliers show items in stock for shipping or pickup. Big orders might go by freight. Specialty sizes or branded parts, like the 3/8 male pipe x 9/16 female adapter, might take longer.
| Item | Spec | Price Range (each) | Application |
|---|---|---|---|
| Nut & Ring | 3/8 Brass Ferrule | $0.75 – $2.50 | Compression seal for copper or PEX |
| Straight Adapter | 3/8 x 1/2 adapter, brass | $4 – $12 | Size transitions |
| Pipe Adapter | 3/8 male pipe x 9/16 female adapter | $6 – $18 | Appliance to pipe |
| Union | Union reduction compression adapter, brass | $8 – $20 | Compress-to-thread transitions with union |
| Needle Valve | 3/16 Valve | $12 – $35 | Flow control for refrigerator or RO lines |
Maintenance, Troubleshooting Leaks, And Replacement Tips
Routine care of brass fittings is key to avoiding unexpected issues. Simple checks of visible parts can significantly reduce leak risks. These quick inspections can prevent costly water damage.
Diagnosing Leaks With A Ferrule Seating Check
To identify leaks in adapters, start by isolating the line and clean the joint. Check for water, mineral buildup, or corrosion around the compression nut and ferrule area.
Next, check the seating. Back off the nut, then tighten it back to the recommended torque. Pros recommend tightening by hand then turning slightly using a wrench. If leaks continue, take it apart and check the ring for issues.
When To Replace Ferrules Or Swap The Adapter
You should replace ferrule parts if they show signs of damage, like bending, scratches, or bad seating. Bad rings cause leaks, even if tightened.
For more severe issues, like bad threads, rust inside, or compliance issues, you should replace the entire adapter. Make sure new parts are the right size to fit well.
Maintenance Tips For Water Lines
Regular preventive maintenance is essential for plumbing lines. Inspect every six months for leaks, loose parts, and stressed tubing. Also, check the condition of sleeves/inserts on plastic tubing.
Keep a small repair kit handy with common ferrules, nuts, and a spare adapter. Quick repairs can minimize downtime and water issues.
| Inspection | Signs | Remedy |
|---|---|---|
| Visual check | Wetness, scale, rust | Clean and check seat |
| Check tightness | Loose or crushed nuts | Tighten to spec: hand-tight + small wrench turn; recheck leak |
| Ferrule condition | Damage or bad bite | Swap ferrule or adapter |
| Adapter body | Bad threads, rust, lead | Replace entire compression outlet brass adapter with compliant part |
| Plastic tubing | Missing sleeve, crushed tubing, poor fit | Install plastic sleeve or brass insert, replace damaged tubing |
- When troubleshooting, go step-by-step from simple to complex checks.
- Stock matching ferrules and nuts to quickly replace a failed ferrule will save time.
- Document torque values and IDs for future compression outlet brass adapter maintenance.
Buying Wholesale Brass Compression Adapters In The US
For contractors and shops seeking bulk adapters, Installation Parts Supply is a great option. They sell both single pieces and bulk orders nationwide. Their inventory includes essential parts like 3/8 OD x 1/4 FIPS, 3/8 OD x 3/4 MIPS, and specialty sizes. They also offer ferrules, nuts, and needle valve kits to complete any installation.
Other good sources are wholesalers and plumbing suppliers like PlumSource. Online sites are also options. They provide various shipping methods, like pickup, delivery, and truck or pallet shipment for bulk. This makes it easy to find 3/8 to 1/2 adapter plumbing wholesale or getting quotes for adapters.
When buying bulk adapters, it’s important to check the specifications. Look for compression OD, thread types, finishes, and potable-water certifications like NSF/Lead-free. For large buys, ask for discounts and current stock levels. If urgent, most suppliers keep 3/8″ and 1/2″ sizes in stock with no minimum purchase required.
Installation Parts Supply offers detailed product lists, pricing, and compliance data for potable applications. This aids comparison and fitting. Planning and checking specs cuts returns and speed up installations. Buying brass compression adapters in bulk from trusted sellers is practical and cost-effective. Because they offer data and availability information.
